Original price was: £843.00.£590.10Current price is: £590.10. + VAT
Upgrade your property’s perimeter security with the robust power of the Fadini JUNIOR 633 230V Electromechanical Sliding Gate Automation Kit (Model K633.1L / VIX 53 Edition). Engineered to bridge the gap between heavy residential and light commercial needs, this high-torque, mains-driven system smoothly drives sliding gates up to 600 kg in weight at a steady speed of 10 meters per minute.
The Junior 633 utilizes an industrial-grade 0.33 HP induction motor paired with an oil-bath transmission. By fully submerging its hardened steel worm screw and reinforced technopolymer crown gear inside a sealed FADINI 706L fluid reservoir, the system delivers quiet operation and excellent heat dissipation. Managed by the integrated Elpro 65 Digital Control Unit, the operator offers simple single-button programming, adjustable deceleration arcs, and non-contact magnetic limit tracking. Safety is physically and digitally managed by an internal encoder working alongside an adjustable mechanical safety clutch to detect obstructions quickly.
High-Torque 230V Induction Core: 0.33 HP AC motor generates a robust 600 N of thrust force, making it ideal for heavier timber-clad or wrought-iron gates facing high wind resistance.
Permanent Fluid-Immersed Gears: Internal gear linkages run constantly in a protective oil bath to minimize friction, lower operational noise, and prevent internal components from wearing out premature.
Smart Hood Status Indicator: The sleek outer casing includes an integrated dual-color LED diagnostic light strip (Blue indicates normal automated operation; Amber indicates a diagnostic or safety warning).
Precision Magnetic End Limits: Uses robust, non-contact magnetic sensors instead of mechanical springs to track travel ends, preventing ice build-up or rust from causing tracking errors.
Heavy timber-clad sliding gates or tracked iron systems require high initial thrust to move from a dead stop, especially when the track accumulates leaves, gravel, or winter frost. The Fadini JUNIOR 633 (K633.1L) kit meets this demand by utilizing a 230V AC mains-powered induction motor. Unlike smaller low-voltage systems that can stall under high resistance, the 230V configuration delivers a steady 600 N of thrust, ensuring dependable travel performance even on less-than-perfect gate tracks.
The structural design centers on Fadini’s oil-bath lubrication framework. The main mechanical linkages are continuously protected by a layer of fluid, reducing friction-induced heat. This allows the system to support intensive duty cycles without triggering the internal 160°C thermal overload cut-out. Controlled by the integrated Elpro 65 control board, the operator cushions the gate’s movement at the end of both the opening and closing cycles using adjustable digital deceleration zones.
Powder-Coated Die-Cast Foundation: Built on a rugged, corrosion-resistant die-cast aluminum base plate finished with a polyester powder coat to protect against road salt and harsh weather.
Dual-Anticrush Protection Matrix: Combines an internal encoder with continuous current monitoring to detect obstructions and immediately reverse gate travel.
Key-Locked Safety Release Handle: Features a solid aluminum manual release handle secured by an encrypted key. Opening this handle trips an internal safety switch that cuts power to the control logic for user safety during manual operation.
Master/Slave Synchronization: The Elpro 65 firmware supports dual-cabling synchronization, making it easy to coordinate two opposing sliding gates covering a broad driveway footprint.

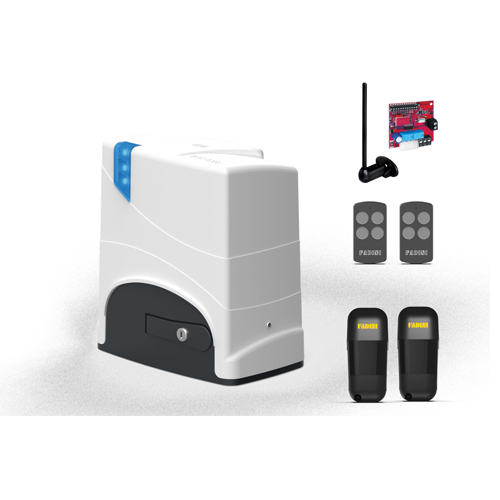

1x Junior 633 230V Geared Sliding Motor: Complete with an integrated Oil-Bath Transmission and structural foundation baseplate.
1x Integrated Elpro 65 Microprocessor Controller: Pre-configured and pre-wired inside the motor tower enclosure.
1x VIX 53/2 R Plug-In Radio Card: (Model 5311L) Advanced 868.19 MHz rolling-code secure receiver module.
2x VIX 53/4 TR 4-Button Remote Transmitters: (Model 5313SL) Modern Graphite Grey multi-channel rolling-code keyfobs.
1x Pair of Orbita 57 Safety Photocells: (Model 570L) Surface-mounted, 180° adjustable infrared safety beams.
1x Heavy Steel Ground Anchor Plate: Complete with four M10 foundation bolts for secure installation in concrete bases.
| System Attribute | Engineering Specification |
| Kit Model Reference | JUNIOR 633 Sliding Gate Kit (SKU: K633.1L) |
| Mains Supply & Motor Input | 230V AC Single-Phase Supply Line (50Hz) |
| Motor Rated Power | 0.25 kW (0.33 HP High-Torque AC Induction Motor) |
| Max Absorbed Power | 400 W |
| Max Absorbed Current | 2.0 A |
| Motor Shaft Rotation Speed | 1,350 rpm |
| Max Operational Thrust | 600 N (High-Force Pull Profile) |
| Gear Reduction Ratio | 1:31 Internal Matrix |
| Output Pinion Module | Module 4 (M4 Standard Drive Interface) |
| Gate Linear Travel Speed | 10 meters per minute |
| Internal Lubricant Type | Premium FADINI 706L Hydraulic/Transmission Fluid |
| Motor Thermal Protection Cutout | 160°C Core Stator Protection Sensor |
| Limit Switch Typology | High-Precision Non-Contact Magnetic Sensors |
| Protection Enclosure Grade | IP54 Weatherproof Structural Enclosure |
| Duty Cycle Profile | Intensive Operational Frequency (15 Full Cycles/Hour) |
| Operating Heat Range | Suitable for temperatures between -20°C up to +50°C |
Pro Tip: Unlike the low-voltage 24V DC Junior 624, the 230V AC Junior 633 relies on an internal 12.5 microfarad (μF) starter capacitor to generate the initial phase-shift torque required to move a heavy 600kg gate from a dead stop.
The Professional Method: During cold winter handovers, if you notice the gate stuttering or stalling immediately after receiving a start signal, don’t adjust the Elpro 65 electronic force settings right away. First, check that the 12.5 μF capacitor hasn’t lost capacitance due to voltage drops over long cable runs. Always use a minimum of 2.5mm² cable for mains power lines exceeding 20 meters from the consumer unit. This ensures the starter capacitor receives the stable voltage required to deliver the full 600 N of breakaway thrust.
