Original price was: £2,881.00.£2,016.70Current price is: £2,016.70. + VAT
Command massive gates and demanding commercial perimeters effortlessly with the Fadini COMBI 787 (K787.1L) Heavy-Duty Underground Double Gate Automation Kit. Positioned as the ultra-robust elder brother to the 740 series, the Combi 787 is engineered specifically to handle immense physical loads and high wind-resistance profiles without breaking a sweat. It effortlessly automates heavy close-boarded timber, ornamental cast iron, or industrial steel double gates up to 6 meters wide per leaf (or up to a staggering 1,000kg for shorter spans).
Housed completely out of sight within heavy-gauge galvanized foundation enclosures, the K787.1L variant features a standard 110° shaft rotation backed by irreversible bidirectional hydraulic locking—ensuring elite, uncompromising structural perimeter security without altering your entranceway’s architectural profile.
Massive 1,000kg Heavy-Duty Lifter: High-volume hydraulic cylinders provide immense output torque, purpose-built for high-inertia residential estate and commercial gates.
Irreversible Double Hydraulic Locking: Internal hydraulic valves securely lock the gate leaves in both the fully opened and closed positions, establishing an exceptional mechanical barrier against forced entry.
Industrial-Grade Oil Hydraulics: Combining the motor pump and heavy-duty cylinder jack into a single, self-lubricating IP67 enclosure for whisper-quiet operation and extreme longevity.
110° Travel Clearance: Offers the industry-standard opening arc, keeping heavy gate leaves moving on a smooth, controlled trajectory.
When automating solid-faced wooden gates or heavy steel security barriers, wind leverage and dead weight create immense stress that standard domestic underground motors simply cannot withstand. The Fadini COMBI 787 K787.1L system is built with industrial-grade margins to handle those exact forces. By utilizing an uprated hydraulic pump assembly and a reinforced drive spindle, it manages the intense lateral torque generated by wide gates facing harsh incoming gales.
This premium edition upgrades your digital security vector by integrating the VIX 53 radio receiver directly into the Elpro 27 control mainframe. Moving away from fixed-frequency systems, the included VIX 53 remote transmitters change their digital access code automatically with every single press. This completely neutralizes “code-grabbing” or radio interception attempts by tech-savvy intruders, ensuring your physical gate security is backed by military-grade electronic access logic.
Completely Invisible Automation: Keeps the beautiful face of high-end timber or bespoke iron gates completely clean and clear of unsightly external arms or surface rams.
Mechanical Anti-Crush Security: Built-in high and low-pressure by-pass valves allow installers to fine-tune physical thrust limits mechanically, meeting strict European safety requirements.
Reinforced Foundation Enclosure: Housed inside an ultra-thick, electrolytically galvanized steel foundation box designed to withstand permanent soil acidity and heavy vehicular tyre loads over the lid.
Heavy Pressed Manual Release: Includes robust emergency release assemblies with bespoke spanners, allowing easy manual disengagement of the hydraulic loop during complete power failures.

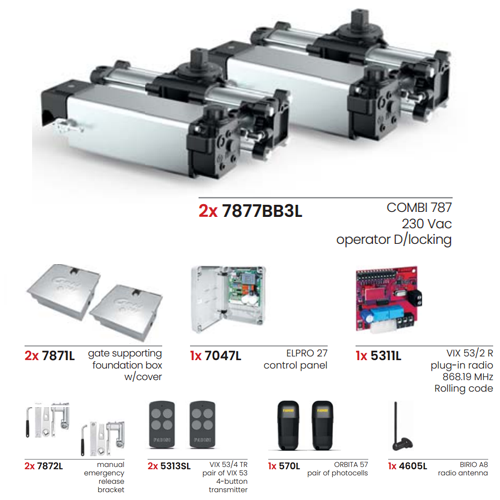

2x Fadini COMBI 787 Heavy-Duty Hydraulic Operators: (1x Left-Handed, 1x Right-Handed, 110° Rotation, Bidirectional Double Locking).
2x Zinc-Coated Ultra-Heavy Steel Enclosures: Protective foundational underground boxes with reinforced drive lids.
1x Elpro 27 Advanced Control Unit: Multi-functional, micro-processor logic command board.
1x VIX 53 Radio Receiver Module: Advanced, high-security plug-in rolling-code receiver card.
2x VIX 53 Rolling-Code Remote Transmitters: Modern, ergonomic multi-channel pocket fobs.
1x Tuned Radio Antenna / Aerial: Enhances remote command range across complex masonry walls.
1x Pair of Safety Photocells: Active infrared beams to actively prevent gate closure on crossing vehicles or pedestrians.
| System Attribute | Engineering Specification |
| Kit Model Code | K787.1L – VIX 53 Edition |
| Radio Control Matrix | Fadini VIX 53 Rolling-Code Protocol (Anti-Clone Encryption) |
| Power Input / Supply | 230V AC (50Hz) |
| Absorbed Power Consumption | 330 W (Uprated Industrial Motor) |
| Max Capacity Limits | Up to 6.0m leaf width / Maximum 1,000kg weight per leaf (See limits matrix) |
| Drive Rotation Angle | 110° Shaft Rotation |
| Locking Mechanism | Irreversible Bidirectional Hydraulic Locking (Double Locking) |
| Output Torque Performance | 300 Nm to 550 Nm (High-Torque Performance) |
| Environmental Ingress Rating | IP67 (Fully Submersible Dust & Waterproof Seal) |
| Hydraulic Fluid Medium | Genuine Fadini Fluid / 708L Oil |
| Operating Heat Range | Suitable for temperatures between -20°C up to +80°C |
| Duty Rating Frequency | Intensive / Continuous Commercial Duty Cycle |
Pro Tip: Due to the extraordinary power output of the Combi 787 hydraulic system, skipping the gate weight-to-width ratio assessment can cause severe damage to your gate hinges or the internal drive splines if the gate meets a solid obstruction.
The Structural Law: While the maximum raw lifting weight of the 787 jack is 1,000kg, this max capacity is strictly rated for gate spans up to 2.0 meters wide. For an extended 6.0-meter gate leaf, your maximum safe weight limit drops to 300kg per leaf to manage the massive rotational inertia. If you are fitting this kit to gates over 3.5 meters in width, you must install an external electric lock (such as a mechanical latch lock or maglock) to support the center joint against high-torque wind deflection.
