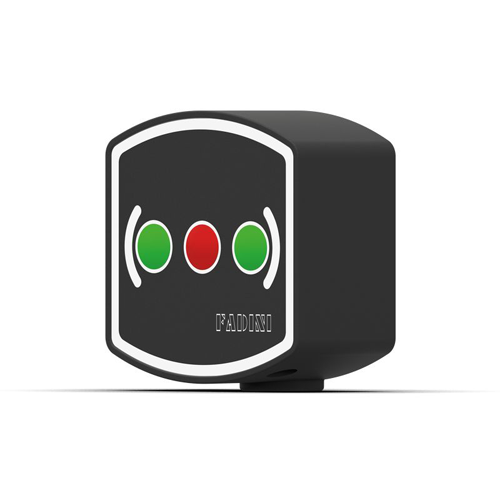

Fadini Zero.PB Push Button Surface Mounted

Fadini Zero.PB Push Button

Original price was: £80.00.Current price is: £64.00. + VAT

INDOOR BUTTON-SWITCH WITH THREE BUTTONS
Surface and recess versions

SKU zero.pb Categories , Tags , , , , , , , , , Brand:

Description

INDOOR BUTTON-SWITCH WITH THREE BUTTONS
Surface and recess versions

TOP SECURITY
Metal alloy body, powder coated and highly resistant to atmospheric agents. Incorporated electronic card, with terminals, two NO contacts and one NC contact. Compact size and dimensions: only 20 mm jutting from surface line level with the recess version.

WHEN DESIGN CAN ILLUMINATE
Back-illuminated, luminous frame by a white led. Complete line of posts and fixing supports.

Data Sheet:-

  • Power supply of the led (Vac/dc)
    24
  • Absorption of the led (mA)
    max 8
  • Working temperature (°C)
    -30 ÷ +70
  • Contact of microswitches
    gold triple coating
  • Microswitch max. load (mA – Vdc)
    100 – 30
  • Grade of protection IP
    54

Additional information

Mounting

Surface Mounted, Recess Mounted
Documentation

https://fadiniuk.co.uk/sites/default/files/download_area/IT/librettidiistruzione/istr_zero.pb_multi.pdf
