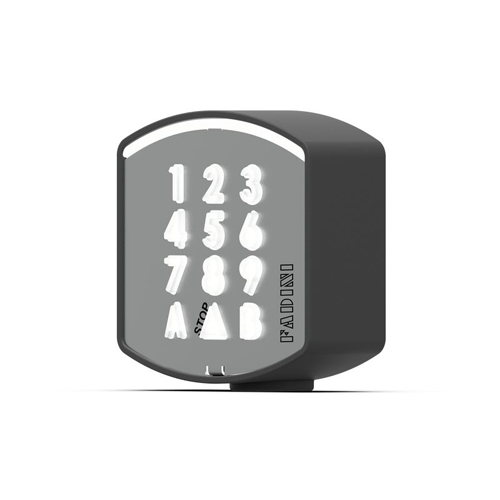

Fadini Zero.DGT Keypad

Description

DIGITAL KEYPAD WITH CABLE CONNECTION
12 back-illuminated key-buttons. Surface or recess mount options

TOP SECURITY
Metal alloy body, powder coated and highly resistant to atmospheric agents. Compact size and dimensions: only 21 mm jutting from surface line level with the recess version. Front cover made of AISI 304 brushed stainless steel. Operations by a numerical combination of 1 to 6 digits. Complete line of posts and fixing supports.

LED BACK-ILLUMINATION
Visual signal confirming correct combination: green led for correct digit combination or red led for wrong digit combination. Acoustic signal on pressing each single key-button.
Timed and bistable functions, incorporated stop button.

TOP SECURITY
Metal alloy body, powder coated and highly resistant to atmospheric agents. Opening only by key once inserted. Incorporated electronic card, complete with terminals and NO and NC contacts. Compact size and dimensions: 23 mm minimum jutting from surface line level with the recess version.

WHEN DESIGN CAN ILLUMINATE
Back-illuminated, luminous frame by a white led. Complete line of posts and fixing supports.

Data Sheet:-

• Power supply (Vac/dc)
  12/24
• Keypad absorption max. (mA)
  25
• Relay absorption on standby (mA)
  4
• Relay absorption activated (mA)
  27
• Working temperature (°C)
  -20 ÷ +80
• Channels (NO)
  2
• Channels (NC)
  1
• Communication distance (m)
  max 100
• Output contact (A/Vac, VA)
  1/125, 60
• Keypad grade of protection IP
  54
