Original price was: £650.00.£520.00Current price is: £520.00. + VAT

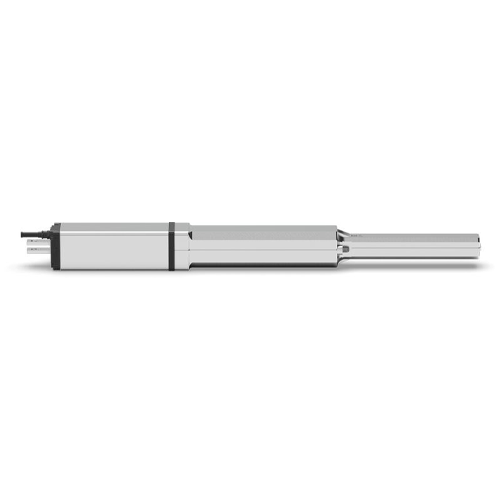

Hindi 880 sprint
For swinging gates
Electromechanical operator on-the-gate mount
For residential and collective applications
230 Vac
2,3 m | 400 kg
Hindi 880 sprint
For swinging gates
Electromechanical operator on-the-gate mount
For residential and collective applications
230 Vac
2,3 m | 400 kg
OIL-HYDRAULIC
Anti-crush safety ensured by the two by-pass valves incorporated in the actuator. Easy release system by special key.
ROBUST
Structure entirely made of aluminium. Simple to install and adjust. It comes in a kit format including
the accessories.
VERSATILE
Several options are available such as reversible non locking, locking by hydraulic device in closed gate
position or double locking.
Data Sheet:-
Power supply (Vac – Hz)
230 – 50
Absorbed power (W)
250
Power yield (W)
180
Max. absorbed current (A)
1,2
Rod stroke (mm)
235
Rod diameter (mm)
16
Linear speed opening/closing (mm/s)
~ 16
Opening force (N)
0 ÷ 5.100
Closing force (N)
0 ÷ 6.200
Working temperature (°C)
-25 ÷ +80 [F]
Oil type
708L
Grade of protection IP
67
Frequency of use
intensive
Weight (kg)
9,5
[F]: -40 °C with specific optional accessories.
Dimensions:-
Application:-
| Documentation |
|---|
