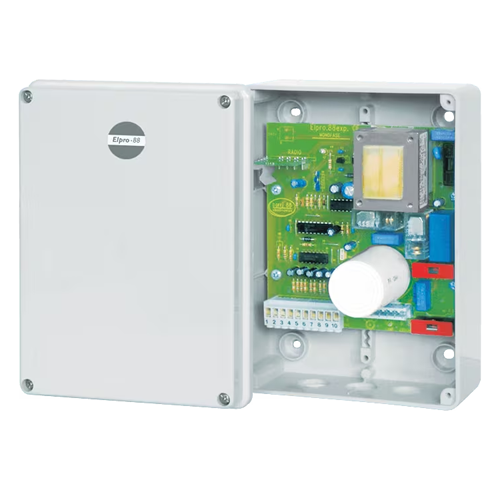

Fadini ELPRO 88 EXP Control Board

ELPRO 88 EXP

FOR AUTOMATIC BARRIERS

COMPATIBILITY
Electronic control unit for BARRI 88.

OPERATING MODES
Automatic, semiautomatic, step by step automatic.

MAIN FUNCTIONS
Intuitive settings by trimmers and dip-switches: radio card plug-in connector, photocells connections, low and high voltage fuses, automatic closing. Box size 147x197x80 mm. Grade of protection IP 56.
Working temperature -20 °C +55 °C.

Data Sheet:-

• Board supply voltage 1PH (Vac – Hz)
  230 – 50
• Board supply voltage 3PH (Vac – Hz)
  –
• Motor max. power (W)
  400
• Courtesy light output (Vac)
  –
• Output for photocells/keyswitch/radio receiver (Vac – mA)
  24 – 500
• Pilot light output (Vac – W)
  –
• DSA control output (Vac – mA)
  –
• Flashing light output (Vac – W)
  230 – 25
• Motor run time (s)
  60
• Dwell time (s)
  –
• Gate delay time on closing (s)
  –
• Pedestrian opening time (s)
  –

Wiring Diagram:-
