Fadini ELPRO 65 Control Board

Description

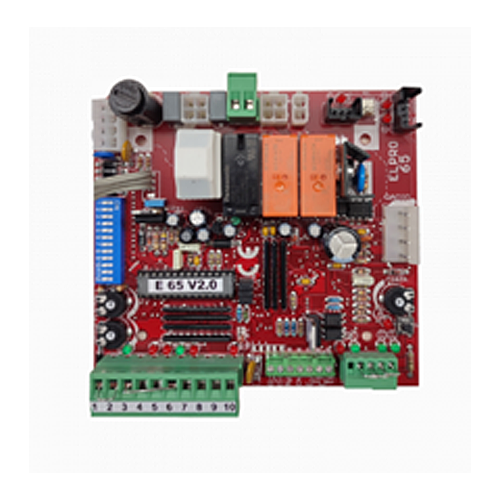

ELPRO 65
For sliding gates

COMPATIBILITY
Electronic control unit for JUNIOR 633 and JUNIOR 650.

OPERATING MODES
Automatic, semiautomatic, step by step automatic, pedestrian and pre-flashing.

MAIN FUNCTIONS
Simple programming by one button: gate travel settings by auto-learning, slowdowns, gate travel reversing on obstacle impact, preset for a second sliding gate (master/slave), electronic brake. Green/red diagnostic LED lights for an easy assessment of the operator status. (DSA) photocells autotest, (DACS) safety edges autotest, logic system (RT DATA). Working temperature -20 °C +55 °C.

Data Sheet:-

Board supply voltage 1PH (Vac – Hz)
230 – 50
Board supply voltage 3PH (Vac – Hz)
–
Motor max. power (W)
375
Courtesy light output (Vdc – mA)
24 – 50
Output for photocells/keyswitch/radio receiver (Vdc – mA)
24 – 500
Pilot light output (Vdc – W)
24 – 1
DSA control output (Vdc – mA)
24 – 150
Flashing light output (Vdc – W | Vac – W)
230 – 25
Motor run time (s)
–
Dwell time (s)
1 – 120
Gate delay time on closing (s)
–
Pedestrian opening time (min)
min 3

Wiring Diagram:-
