Fadini Elpro 35M Control Panel

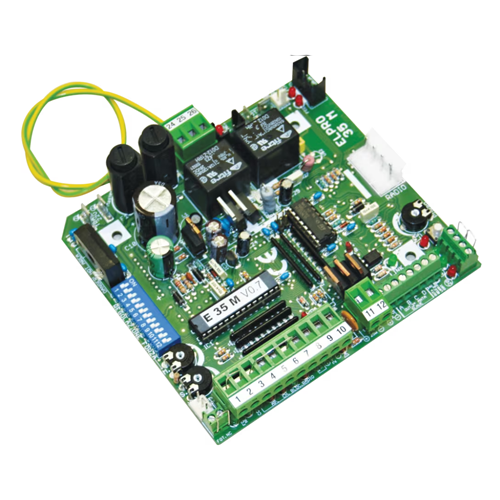

Fadini ELPRO 35 Control Board

Price range: £70.40 through £160.80 + VAT

ELPRO 35

FOR SWINGING GATES

COMPATIBILITY
ELPRO 35M: Electronic control unit for BART 350 Master.
ELPRO 35S: Electronic control board for the operator BART 350 Slave.

SKU elpro35 Categories , Tags , , , , , , , , , , , Brand:

Description

 ELPRO 35

FOR SWINGING GATES

COMPATIBILITY
ELPRO 35M: Electronic control unit for BART 350 Master.
ELPRO 35S: Electronic control board for the operator BART 350 Slave.

OPERATING MODES
Automatic, semiautomatic, step by step automatic, pedestrian and pre-flashing.

MAIN FUNCTIONS
Simple programming by one button: gate travel settings by auto-learning, slowdowns, gate travel reversing on obstacle impact, preset for connection to ELPRO 35S, slave control board. Intuitive settings by trimmers and dip-switches, green/red diagnostic LED lights for an easy assessment of the operator status, (DSA) photocells autotest, (DACS) safety edges autotest, logic system (RT DATA). Working temperature -20 °C +55 °C.

Data Sheet:-

  • Board supply voltage 1PH (Vac – Hz)
    230 – 50
  • Board supply voltage 3PH (Vac – Hz)
    –
  • Motor max. power (W)
    200
  • Courtesy light output (Vdc – mA)
    24 – 50
  • Output for photocells/keyswitch/radio receiver (Vdc – mA)
    24 – 500
  • Pilot light output (Vdc – W)
    24 – 1
  • DSA control output (Vdc)
    24
  • Flashing light output (Vdc)
    24
  • Motor run time (s)
    –
  • Dwell time (s)
    1 – 120
  • Gate delay time on closing (s)
    –
  • Pedestrian opening time (s)
    –

Wiring Diagram:-



Additional information

Documentation

https://fadiniuk.co.uk/sites/default/files/download_area/IT/librettidiistruzione/istr_elpro35m_multi.pdf
Type of Board

35M (Bart Master), 35S (Bart Slave)
