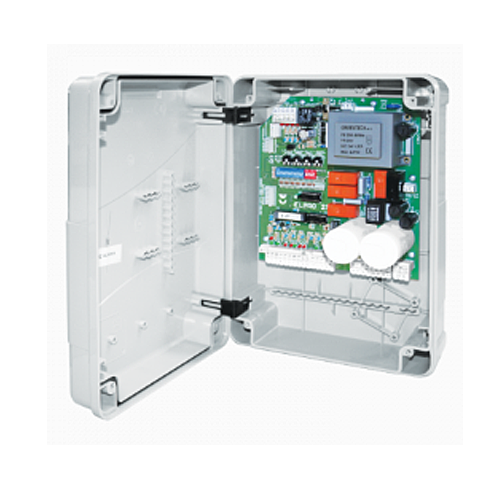

Fadini ELPRO 27 Control Board

Elpro 27

FOR SWINGING GATES

COMPATIBILITY
Electronic control unit for single or double swinging gate motors, with or without limit switches. For single or double sliding gate motors (max 0,5 HP with mechanical clutch).

OPERATING MODES
Automatic, semiautomatic, step by step automatic, deadman control, pedestrian, stroke reversing pulse and pre-flashing.

MAIN FUNCTIONS
Intuitive settings by trimmers and dip-switches: electric lock power supply, (DSA) photocells autotest, (DACS) safety edges autotest, preset for traffic lights up to 3 lights, storing of time settings, operator status indication. Box size 210x295x110 mm. Grade of protection IP 64. Working temperature -20 °C +55 °C.

Data Sheet:-

• Board supply voltage 1PH (Vac – Hz)
  230 – 50/60
• Board supply voltage 3PH (Vac – Hz)
  –
• Motor max. power (W)
  750
• Courtesy light output (Vac – W)
  230 – 100
• Output for photocells/keyswitch/radio receiver (Vac)
  24
• Pilot light output (Vac – W)
  24 – 3
• DSA control output (Vac – mA)
  24 – 150
• Flashing light output (Vac – W)
  230 – 25
• Motor run time (s)
  0 – 120 (sliding)
  0 – 60 (swinging)
• Dwell time (s)
  1 – 220
• Gate delay time on closing (s)
  0 – 10
• Pedestrian opening time (s)
  1 – 45

Wiring Diagram:-
