Original price was: £450.00.£360.00Current price is: £360.00. + VAT

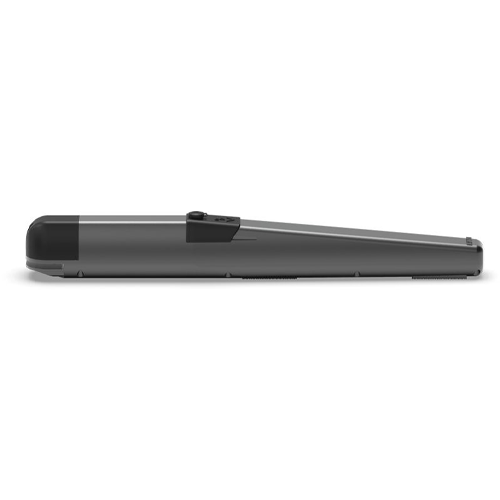

Dardo 430
For swinging gates
Electromechanical operator on-the-gate mount
For residential applications
230 Vac
2,8 m | 350 kg
Dardo 430
For swinging gates
Electromechanical operator on-the-gate mount
For residential applications
230 Vac
2,8 m | 350 kg
QUIET
230 Vac irreversible electromechanical operator. The mechanics include a steel rolled worm screw, brass threaded nut, teflon crown gear, radial bearing and lubricated bushings.
SIMPLE
Release system for manual operations by means of the same key that also opens the protection cover.
SMART
Gate delay can be simply programmed automatically, or manually by a button in the electronic control unit ELPRO 43. Mechanical stop plates in open and closed positions, fitted to the cover and adjustable.
SAFE
Anti-crush system by the encoder and amperometric constant monitoring to ensure the correct functioning of the operator, reversing gate travel on impact with possible obstacles. Acceleration and deceleration on each cycle.
ROBUST AND COMPACT
Protection cover made of pressure cast aluminium and polyester powder coating.
Data Sheet:-
Power supply (Vac – Hz)
230 – 50
Max. absorbed power (W)
300
Max. absorbed current (A)
1,7
Opening time 90° (s)
16 ÷ 20 [D]
Speed (mm/s)
16 ÷ 20 [D]
Max. torque (N)
3.000
Working temperature (°C)
-20 ÷ +50
Motor thermal protection (°C)
160
Grade of protection IP
44
Rod useful stroke (mm)
320 [E]
Weight (kg)
8
Frequency of use
semi-intensive 35%
[D]: Opening and closing times depend on the fixing distances, speed adjustment and gate inertia.
[E]: Without the mechanical stops it is possible to extend travel by 60 mm, but it is required that gate stops be fitted on to the ground both in open and closed gate positions.
Dimensions:-
Application:-
