Fadini Bart 350

Description

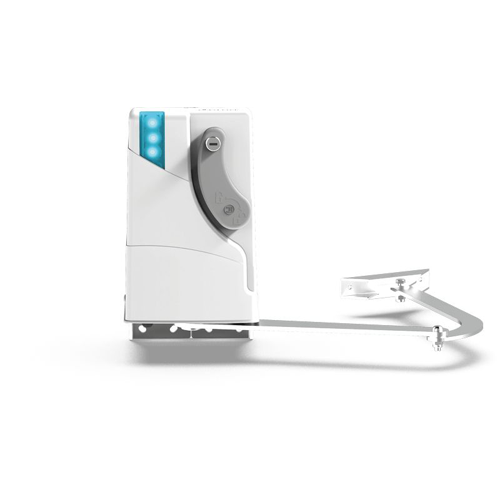

Bart 350

For swing gates

Irreversible electromechanical actuator for external mounting with articulated arm

For residential use
24 Vdc

1,8 m | 300 kg

DESIGN
Modern style with a blue LED lamp on the cover to indicate the gate operator status.

QUIET
24 Vdc irreversible geared motor operator on ball bearings.

SMART
Simple automatic programming by pulsing a button to set opening time and slowdown time on gate
stops or limit switches. Manual programming of the gate delay times.

SAFE
Crush preventing system by encoder and constant amperometric monitoring to ensure the correct functioning of the operator, detecting obstacles and reversing gate travel.

STRONG AND COMPACT

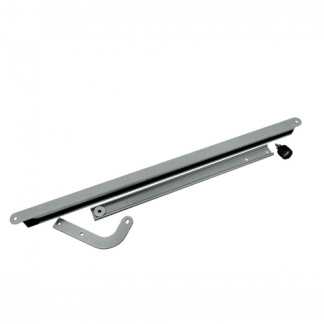

Zinc-coated steel fixing plate. Shearing preventing, zinc-coated steel arm either articulated or sliding on a guide. Limit switch micro-switch and gate stop in open gate (standard) and in closed gate (optional) positions. Overriding by handle and key.

TESTED AND CERTIFIED
In compliance with EN 12445 and EN 12453 European Norms.

Data Sheet:-

• Power supply (Vac – Hz)
  230 – 50
• Motor voltage (Vdc)
  24
• Absorbed power (W)
  150
• Absorbed current (A)
  5
• Max. torque (Nm)
  180
• Opening-closing time (s)
  16 (95°)
• Working temperature (°C)
  -20 ÷ +50
• Grade of protection IP
  53
• Kind of lubrication
  grease
• Weight (kg)
  10
• Frequency of use
  intensive

Dimensions:-

Application:-
